| General Information |
|---|
| Manufacturer | Comtrol Corporation |
| Manufacturer Part Number | 99426-8 |
| Manufacturer Website Address | www.comtrol.com |
| Brand Name | Comtrol |
| Product Line | RocketPort Plus |

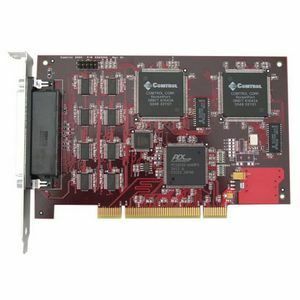

| Product Name | RocketPort Plus uPCI Octa DB9 Multiport Serial Adapter |
| Product Type | Multiport Serial Adapter |
| Technical Information |
|---|
| Host Interface | Universal PCI |
| Data Transfer Rate | Up to 921.60 Kbps |
| Interfaces/Ports |
|---|
| Ports Expandability | 8 x 9-pin DB-9 Male RS-232 - Serial, Via Cable (Optional) |
| Physical Characteristics |
|---|
| Form Factor | Plug-in Card |
| Dimensions | 4.0" Height x 6.3" Width |
| Weight (Approximate) | 11.40 oz |
| Warranty |
|---|
| Standard Warranty | 5 Year Limited |
Marketing Information
The Comtrol RocketPort Plus uPCI Octa/DB9 serial port expansion card provides eight "native" serial ports utilizing a single PCI card slot and is compatible with all current 3.3 and 5.0 Volt PCI bus architectures. The DB9 serial ports support RS 232 serial communications at speeds up to 921 Kbps. Every RocketPort serial card features the high performance RocketPort ASIC chip, consisting of a dedicated 44MHz processor that minimizes host CPU utilization and larger transmit and receive buffers than those of 16550 UART chips used in standard PC serial ports and low end serial cards. RocketPort ASIC technology enables these cards to outperform other serial expansion cards by handling the transmission of large amounts of data more reliably and efficiently. Additionally, RocketPort products do not require the assignment of interrupts, simplifying installation and eliminating conflicts with other server cards. The product is fully compliant with the European RoHS Directive 2002/95/EC.
