| General Information |
|---|
| Manufacturer | Digital Peripheral Solutions, Inc |
| Manufacturer Part Number | QT5116-1 |
| Manufacturer Website Address | www.q-see.com |
| Brand Name | Q-see |
| Product Model | QT5116 |

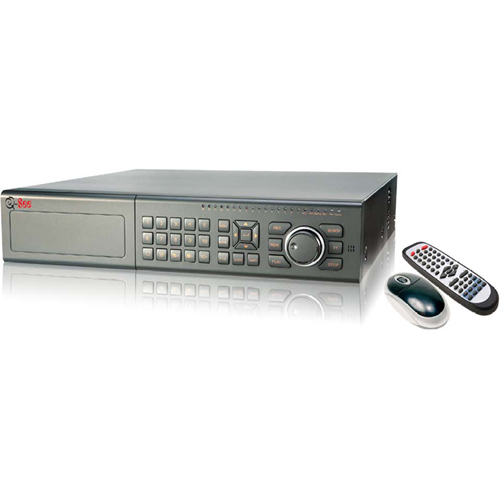

| Product Name | QT5116 16-Channel Digital Video Recorder |
| Product Type | Video Surveillance System |
| Technical Information |
|---|
| Product Features | Digital Video Recorder |
| Storage |
|---|
| Hard Drive | 1 TB |
| Display & Graphics |
|---|
| Video Resolution | 704 x 480 @ 30 fps |
| Video Resolution | 704 x 576 @ 25 fps |
| Video |
|---|
| Video Formats | H.264 |
| Video System | NTSC |
| Video System | PAL |
| Network & Communication |
|---|
| Network | Ethernet |
| Interfaces/Ports |
|---|
| Interfaces/Ports | 16 x BNC Video In |
| Interfaces/Ports | 2 x BNC Video Out |
| Interfaces/Ports | 1 x 15-pin HD-15 VGA Out |
| Interfaces/Ports | 1 x 4-pin Mini-DIN S-Video Out |
| Interfaces/Ports | 16 x RCA Audio In |
| Interfaces/Ports | 1 x RCA Audio Out |
| Interfaces/Ports | 16 x Alarm In |
| Interfaces/Ports | 4 x Alarm Out |
| Interfaces/Ports | 2 x 4-pin Type A USB 2.0 USB |
| Interfaces/Ports | 1 x RJ-45 Network |
| Interfaces/Ports | 1 x RS-485 Serial |
| Interfaces/Ports | 1 x DC Power Input |
| Power Description |
|---|
| Input Voltage | 12 V DC |
| Miscellaneous |
|---|
| Additional Information | Remote viewing through IE Browser Supports up to 8 SATA hard drives Supports Sub stream for Internet Viewing Up to 5 Users Can Access Remotely at Same Time |
| Warranty |
|---|
| Standard Warranty | 1 Year |
Marketing Information
Quality you can see and experience at an affordable price. This 16 channel DVR will record D1 real-time video on each channel, and features remote Internet monitoring and mobile surveillance through cell phones with Windows Mobile Pro and Symbian OS, iphones, iPads, and Android phones on 3G networks. The H.264 compression allows for maximum storage and little loss of quality, while recording video on to a hard drive. It can simultaneously display live footage, record, playback, connect via network, and back-up without any recording loss.
