| General Information |
|---|
| Manufacturer | Digital Peripheral Solutions, Inc |
| Manufacturer Part Number | QT426-5 |
| Manufacturer Website Address | www.q-see.com |
| Brand Name | Q-see |
| Product Model | QT426 |

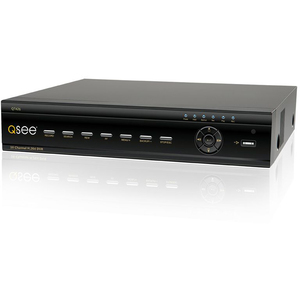

| Product Name | QT426 16-Channel Digital Video Recorder |
| Product Type | Video Surveillance System |
| Technical Information |
|---|
| Product Features | Digital Video Recorder |
| Storage |
|---|
| Hard Drive | 500 GB |
| Display & Graphics |
|---|
| Video Resolution | 704 x 480 @ 120 fps |
| Video Resolution | 352 x 240 @ 480 fps |
| Video |
|---|
| Video Formats | H.264 |
| Network & Communication |
|---|
| Network | Ethernet |
| Interfaces/Ports |
|---|
| Interfaces/Ports | 16 x BNC Video In |
| Interfaces/Ports | 2 x BNC Video Out |
| Interfaces/Ports | 1 x 15-pin HD-15 VGA Out |
| Interfaces/Ports | 2 x 4-pin Type A USB 2.0 USB |
| Interfaces/Ports | 1 x RJ-45 Network |
| Interfaces/Ports | 4 x Audio In |
| Interfaces/Ports | 1 x Audio Out |
| Interfaces/Ports | 16 x Alarm In |
| Interfaces/Ports | 1 x Alarm Out |
| Interfaces/Ports | 1 x RS-485 Serial |
| Power Description |
|---|
| Input Voltage | 110 V AC |
| Input Voltage | 220 V AC |
| Input Voltage Range | 110 V AC to 240 V AC |
| Physical Characteristics |
|---|
| Height | 2.5" |
| Width | 11.8" |
| Depth | 11.0" |
| Miscellaneous |
|---|
| Additional Information | Triplex technology (recording, playback, and net transmitting at the same time) Remote Internet monitoring (up to 5 users at the same time) VGA Port for Viewing Flexibility |
| Warranty |
|---|
| Standard Warranty | 1 Year |
Marketing Information
Quality you can see and experience at an affordable price. This 16 channel DVR features real time CIF recording, or D1 recording at a lower frame rate, remote Internet monitoring and mobile surveillance through cell phones with Windows Mobile Pro and Symbian OS, iPhones, ipads and Android on 3G networks. The H.264 compression allows for maximum storage and little loss of quality, while recording video on to a hard drive. It can simultaneously display live footage, record, playback, connect via network, and back-up without any recording loss.
