| General Information |
|---|
| Manufacturer | QNAP Systems |
| Manufacturer Part Number | VS-6020-PRO-US |
| Manufacturer Website Address | www.qnap.com |
| Brand Name | QNAP |
| Product Line | VioStor |
| Product Model | VS-6020 Pro |

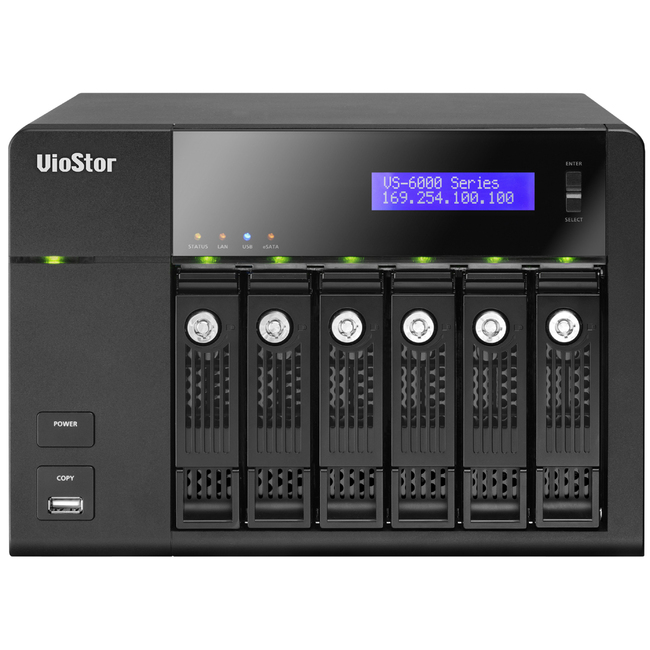

| Product Name | VioStor VS-6020 Pro Network Digital Video Recorder |
| Product Type | Video Surveillance System |
| Technical Information |
|---|
| Product Features | Digital Video Recorder |
| Display & Graphics |
|---|
| Video Resolution | 640 x 480 @ 30 fps |
| Video Resolution | 704 x 480 @ 30 fps |
| Video |
|---|
| Video Formats | Motion JPEG |
| Video Formats | MPEG |
| Video Formats | MPEG-4 |
| Video Formats | H.264 |
| Network & Communication |
|---|
| Network | 10/100/1000Mbps Gigabit Ethernet IEEE 802.3ab |
| Interfaces/Ports |
|---|
| Interfaces/Ports | 2 x RJ-45 Network |
| Interfaces/Ports | 4 x 4-pin Type A USB 2.0 USB Rear |
| Interfaces/Ports | 1 x 4-pin Type A USB 2.0 USB Front |
| Interfaces/Ports | 1 x 15-pin HD-15 VGA |
| Power Description |
|---|
| Input Voltage | 110 V AC |
| Input Voltage | 220 V AC |
| Input Voltage Range | 100 V AC to 240 V AC |
| Physical Characteristics |
|---|
| Height | 6.9" |
| Width | 10.1" |
| Depth | 9.3" |
| Weight (Approximate) | 11.46 lb |
| Miscellaneous |
|---|
| Additional Information | Dual-core Intel Atom processor Memory: 1GB RAM, 512MB Flash (DOM) HDD: 6 x 3.5" SATA(II)/2.5" SATA/SSD 6 x Hot-swappable and lockable tray |
Marketing Information
Powered by dual-core Intel Atom CPU and 1GB memory, the VS-6020 Pro VioStor NVR is the high performance network surveillance system for monitoring, video recording and playback from multiple IP cameras. The Linux-based system supports PC-less quick configuration, monitoring of IP cameras over the network, and video playback by connecting a monitor to the built-in VGA connector, a USB keyboard, and a USB mouse. The VioStor NVR supports simultaneous megapixel recording (up to 8-megapixel) and unique multi-server monitoring, a feature which allows monitoring of up to 120 IP cameras from multiple QNAP NVR servers at the same time. No extra software is required on the PC. In order to enhance system security, the NVR provides advanced event management feature for the administrator to define more handling options when different events or alarms are triggered.
