| General Information |
|---|
| Manufacturer | Adtran |
| Manufacturer Part Number | 4740202G11 |
| Manufacturer Website Address | www.adtran.com |
| Brand Name | Adtran |
| Product Line | NetVanta |
| Product Series | 6000 |
| Product Model | 6240 |

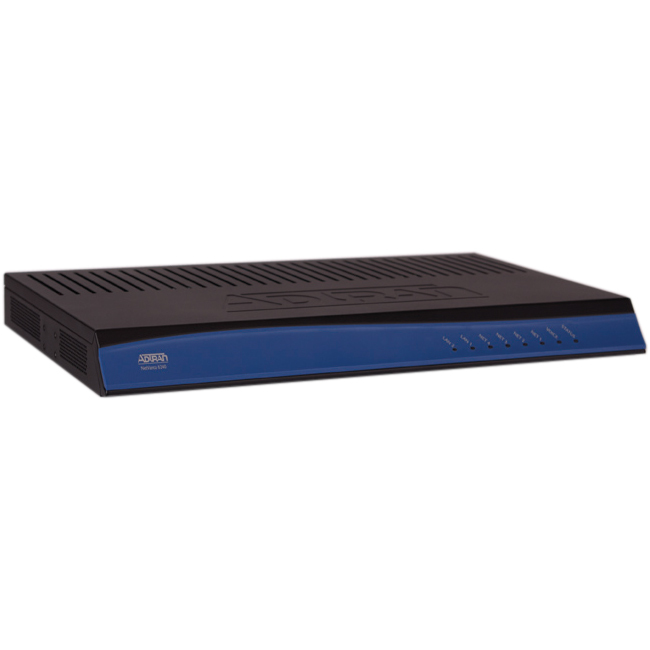

| Product Name | NetVanta 6240 VoIP Gateway |
| Product Type | VoIP Gateway |
| Technical Information |
|---|
| Voice Codec | G.729 |
| Voice Codec | G.711 |
| Voice Codec | G.729ab |
| Voice Codec | G.711 u/A |
| Voice Codec | T.38 |
| Voice Codec | G.168 |
| Interfaces/Ports |
|---|
| Interfaces/Ports | 4 x RJ-48C T1/FT1 Network WAN |
| Interfaces/Ports | 2 x RJ-45 10/100Base-TX Network LAN |
| Interfaces/Ports | 8 x RJ-11 FXS |
| Interfaces/Ports | 1 x DB-9 Console RS-232 Management |
| Interfaces/Ports | 2 x RJ-11 FXO |
| Media & Performance |
|---|
| Connectivity Media | Twisted Pair 10/100Base-TX |
| Data Transfer Rate | 10 Mbps Ethernet |
| Data Transfer Rate | 100 Mbps Fast Ethernet |
| Data Transfer Rate | 1.54 Mbps T1 |
| Management & Protocols |
|---|
| Management | - Web-Based Management
- Command Line Interface
- Telnet
- Syslog
- n-Command
- SNMP v2, v3
- DHCP
- VLAN
- QoS
|
| Security Features | - Stateful Inspection Firewall
- Denial of Service
- Access Control Lists
- Application Level Gateways
- Packet Filtering
- NAT
- NPAT
|
| Power Description |
|---|
| Input Voltage | 120 V AC Power Supply |
| Physical Characteristics |
|---|
| Form Factor | Desktop |
| Form Factor | Wall Mountable |
| Form Factor | 1U 19" Rack-mountable |
| Height | 1.7" |
| Width | 17.3" |
| Depth | 10.3" |
| Weight (Approximate) | 6.50 lb |
| Miscellaneous |
|---|
| Green Compliant | Yes |
| Green Compliance Certificate/Authority | RoHS |
| Green Compliance Certificate/Authority | WEEE |
| Warranty |
|---|
| Standard Warranty | 5 Year |
Marketing Information
ADTRAN offers a wide variety of solutions for converged voice/data services. The NetVanta 6240 Series of Multi-T1 IP Business Gateways are designed for carrier Ethernet and SIP/MGCP Voice over IP (VoIP) networks. These products feature all of the same robust routing and voice features of the widely deployed Total Access IP Business Gateways, along with a host of new features and functions that enable cost effective, reliable IP service delivery. These devices use the AOS to simplify management and administration. Multiple models offer fexibility for varied applications from PRI delivery and trunking services to Hosted IP PBX offerings.
