| General Information |
|---|
| Manufacturer | Motorola, Inc |
| Manufacturer Part Number | LS9208-SR11001NSWR |
| Manufacturer Website Address | www.motorola.com/us |
| Brand Name | Motorola |
| Product Line | Symbol |
| Product Model | LS9208i |

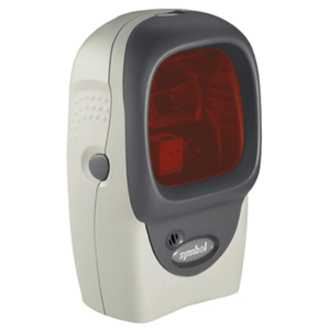

| Product Name | Symbol LS9208i Bar Code Reader |
| Product Type | Desktop Bar Code Reader |
| Technical Information |
|---|
| Connectivity Technology | Cable |
| Bar Code Dimension | 1D |
| Bar Code Symbology Supported | UPC/EAN/JAN UPC/EAN with Supplementals UCC/EAN128 Code 128 ISBT 128 Code 39 Trioptic Code 39 Interleaved 2 of 5 Discrete 2 of 5 Code 93 Code 11 Codabar MSI GS1 DataBar (formerly RSS) |
| Light Source | Laser |
| Scan Rate | 1500 scan/s |
| Maximum Scan Resolution | 4 mil |
| Depth of Field | 0.98" - 2"@4 mil - Code 39 |
| Depth of Field | 0.98" - 3"@5 mil - Code 39 |
| Depth of Field | 0" - 6"@7.80 mil - 60% UPC |
| Depth of Field | 0" - 7"@10.40 mil - 80% UPC |
| Depth of Field | 0" - 8.50"@13 mil - 100% UPC |
| Scan Pattern | Omni-directional |
| Interfaces/Ports |
|---|
| Host Interface | Multi-interface |
| Physical Characteristics |
|---|
| Color | Cash Register White |
| Height | 7.2" |
| Width | 4.8" |
| Depth | 3.7" |
| Weight (Approximate) | 1.34 lb |
| Miscellaneous |
|---|
| Green Compliant | Yes |
| Green Compliance Certificate/Authority | RoHS |
| Warranty |
|---|
| Standard Warranty | 2 Year |
Marketing Information
The Symbol LS9208i Bar Code Reader saves time and delivers versatility, switching easily between handheld and hands-free operation. The 100-line rastering omni-directional scan pattern lets you quickly capture codes no matter how they are presented, and high performance optics enables superior data capture on a wide range of bar codes.
