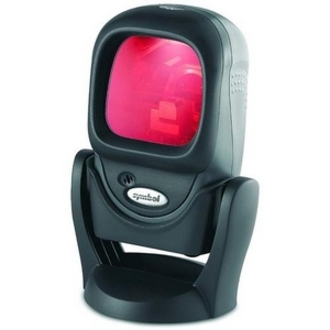

Motorola Symbol LS 9208 Bar Code Reader - Desktop Bar Code Reader - Wired

Part#LS9208SR10171NSWR
New Retail, Factory Sealed. Guaranteed!

0 of 5 stars

Warranty Options

Now:

$154.00

# in stock: 0

Click the BUBBLE below to expedite your backorder of this out of stock item.

outofstock
Click HERE to sumbit a backorder form


Need Assistance? Click here to Chat with a Representative.

General Information
ManufacturerMotorola, Inc
Manufacturer Part NumberLS9208-SR10171NSWR
Manufacturer Website Addresswww.motorola.com/us
Brand NameMotorola
Product LineSymbol
Product ModelLS9208
Product NameSymbol LS 9208 Bar Code Reader
Product TypeDesktop Bar Code Reader
Technical Information
Connectivity TechnologyCable
Bar Code Dimension1D
Bar Code Symbology Supported
  • UPC/EAN/JAN
  • UPC/EAN Supplementals
  • UCC/EAN 128
  • Code 128
  • ISBT 128
  • Code 39
  • Code 39 TriOptic
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • Code 93
  • Code 11
  • Codabar
  • MSI
  • RSS Variants
    • Light SourceLaser
    Scan Rate1500 scan/s
    Maximum Scan Resolution5 mil
    Depth of Field1" - 2.50"@5 mil
    Depth of Field0" - 6"@7.80 mil
    Depth of Field0" - 7.50"@10.40 mil
    Depth of Field0" - 9"@13 mil
    Scan PatternOmni-directional
    Scan PatternSingle Line
    Interfaces/Ports
    Host InterfaceMulti-interface
    Power Description
    Input Voltage5 V DC
    Power SourceExternal
    Environmental Conditions
    Temperature32°F (0°C) to 104°F (40°C) Operating
    Temperature-40°F (-40°C) to 158°F (70°C) Storage
    Humidity5 to 95% Non-condensing
    Physical Characteristics
    ColorWhite
    Height7.2"
    Width4.8"
    Depth3.7"
    Weight (Approximate)1.34 lb
    Miscellaneous
    Additional Information

    Supported Interfaces:

  • USB
  • Serial
  • IBM 468X/469X
  • Keyboard Wedge
  • Wand Emulation
    • Certifications & Standards
  • RoHS

    • Electrical Safety:

  • UL 1950
  • CSA C22.2 No. 950 EN60825

    Laser Safety:

  • CDRH Class IIa Laser Product
  • IEC 60825 Class 1 Laser Product

    EMC:

  • CISPR B
  • FCC B
    • Green CompliantYes
    Green Compliance Certificate/AuthorityRoHS
    Warranty
    Standard Warranty30 Month

    Marketing Information

    The Symbol LS9208 Bar Code Reader from Motorola delivers both a high-performance processor and an innovative 100-line rastering omni-directional scan pattern for increased productivity at checkout, resulting in higher customer satisfaction. Built for both speed and versatility, the Symbol LS9208 features a small footprint, choice of colors and an optional, adjustable multi-mount stand that is easily adaptable to many point-of-sale environments.
