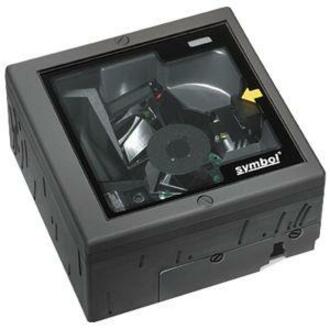

Motorola Symbol LS 7808 Bar Code Reader - Desktop Bar Code Reader - Wired

Part#LS7808BNNU0100ZR
New Retail, Factory Sealed. Guaranteed!

0 of 5 stars

Warranty Options

Now:

$445.00

# in stock: 0

Click the BUBBLE below to expedite your backorder of this out of stock item.

outofstock
Click HERE to sumbit a backorder form


Need Assistance? Click here to Chat with a Representative.

General Information
ManufacturerMotorola, Inc
Manufacturer Part NumberLS7808-BNNU0100ZR
Manufacturer Website Addresswww.motorola.com/us
Brand NameMotorola
Product LineSymbol
Product ModelLS7808
Product NameSymbol LS 7808 Bar Code Reader
Product TypeDesktop Bar Code Reader
Technical Information
Connectivity TechnologyCable
Bar Code Dimension1D
Bar Code Symbology Supported
  • UPC-A
  • UPC-E
  • EAN-8
  • EAN-13
  • UPC/EAN Supplementals
  • Code 39
  • Code 39 Full ASCII
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • Code 128
  • UCC/EAN 128
  • ISBT 128
  • Codabar (NW7)
  • Code 93
  • Code 11
  • RSS Variants
  • UPC-E1
    • Light SourceLaser
    Scan Rate1800 scan/s
    Decode Rate (lps)1800 lines
    Maximum Scan Resolution5 mil
    Depth of Field0" - 0.50"@5 mil
    Depth of Field0" - 4"@7.80 mil
    Depth of Field0" - 5"@10.40 mil
    Depth of Field0" - 7"@13 mil
    Scan PatternOmni-directional
    Interfaces/Ports
    Host InterfaceMulti-interface
    Power Description
    Input Voltage5 V DC
    Environmental Conditions
    Temperature32°F (0°C) to 104°F (40°C) Operating
    Temperature-40°F (-40°C) to 140°F (60°C) Storage
    Humidity5 to 95% Non-condensing
    Physical Characteristics
    ColorBlack
    Height3.1"
    Width6.0"
    Depth6.0"
    Weight (Approximate)1.90 lb
    Miscellaneous
    Additional Information

    Supported Interfaces:

  • Serial
  • IBM 468X/469X
  • Keyboard Wedge
  • USB
  • Synapse

    • Certifications & Standards

    Electrical Safety:

  • UL 60950-1
  • CSA C22.2 No. 60950-1
  • EN 60950-1
  • IEC 60950-1

    • Laser Safety:

  • 21CFR1040.10 Class IIa
  • EN 60825-1
  • IEC60825-1 Class1

    • EMI/RFI:

  • FCC Part 15 Class B
  • ICES-003 Class B
  • EN 55022 Class B
  • EN 55024

    • Environmental:

  • RoHS
  • 2005 Sunrise
  • WEEE
    • Green CompliantYes
    Green Compliance Certificate/AuthorityRoHS
    Green Compliance Certificate/AuthorityWEEE
    Warranty
    Standard Warranty3 Year

    Marketing Information

    The advanced LS7808 horizontal mini-slot scanner from Symbol Technologies delivers exceptionally high first-pass read rates for faster checkout times - and better customer service. The omni-directional scan pattern reads the bar code regardless of orientation, eliminating the need to precisely align products to the scanner. The hands-free design and large scan window enable your cashiers to stay focused on your customers, instead of the products they are scanning - enabling high levels of personalized service.
