| General Information |
|---|
| Manufacturer | Motorola, Inc |
| Manufacturer Part Number | DS9808-SR7NNU03ZR |
| Manufacturer Website Address | www.motorola.com/us |
| Brand Name | Motorola |
| Product Line | Symbol |
| Product Model | DS9808 |

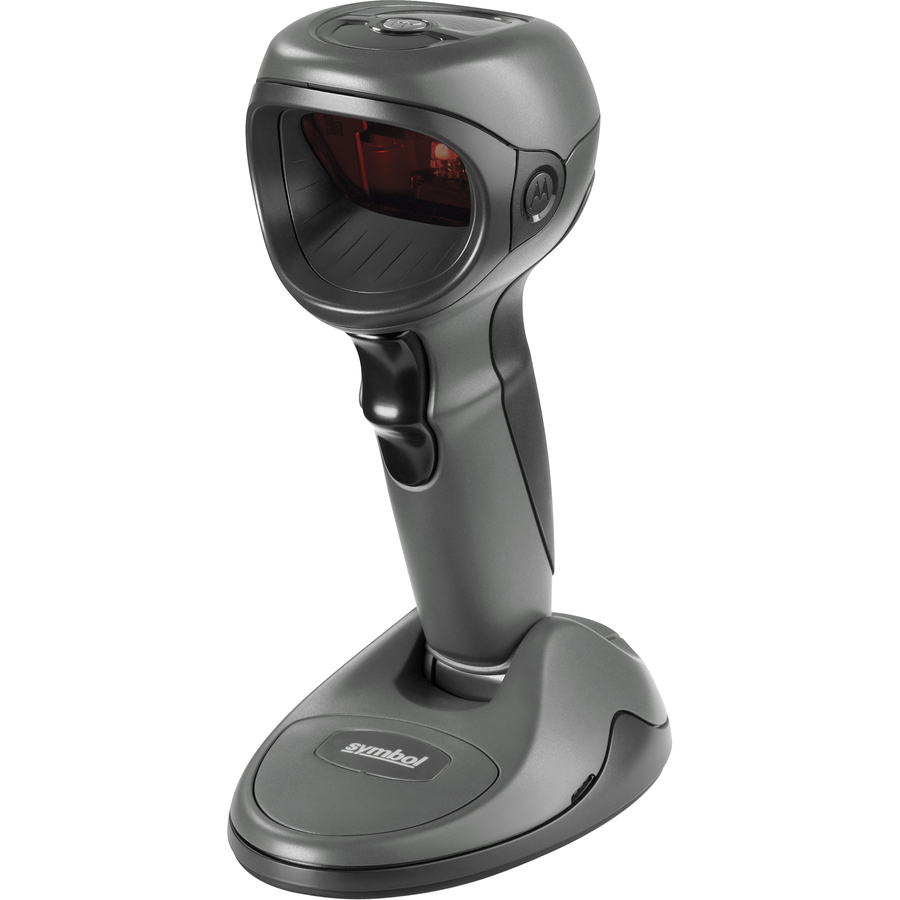

| Product Name | Symbol DS9808 Bar Code Reader |
| Product Type | Handheld Bar Code Reader |
| Technical Information |
|---|
| Connectivity Technology | Cable |
| Bar Code Dimension | 1D |
| Bar Code Dimension | 2D |
| Bar Code Symbology Supported | 1D: UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/JAN-8/JAN-13) plus supplementals ISBN (Bookland) ISSN Coupon Code Code 39 (Standard, Full ASCII, Trioptic) Code 128 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated) Code 93 Codabar/NW7 Code 11 (Standard, Matrix 2 of 5) MSI Plessey I 2 of 5 (Interleaved 2 of 5 / ITF, Discrete 2 of 5, IATA, Chinese 2 of 5) GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked, Inverse) Base 32 (Italian Pharmacode) PDF417: PDF417 (Standard, Macro) MicroPDF417 (Standard, Macro) Composite Codes (CC-A, CC-B, CC-C) 2D: TLC-39 Aztec (Standard, Inverse) MaxiCode DataMatrix/ECC 200 (Standard, Inverse) QR Code (Standard, Inverse, Micro) Postal: U.S. Postnet and Planet U.K. Post Japan Post Australian Post Netherlands KIX Code Royal Mail 4 State Customer UPU FICS 4 State Postal USPS 4CB |
| Light Source | Laser |
| Image Sensor | Imager |
| Decode Rate (in/s) | 100 in/s |
| Maximum Scan Resolution | 7.80 mil |
| Depth of Field | 0" - 4.50"@5 mil - Code 39 |
| Depth of Field | 0" - 8.50"@10 mil - UPC/EAN |
| Depth of Field | 0" - 10.50"@13 mil - UPC/EAN |
| Depth of Field | 0" - 5"@6.60 mil - PDF417 |
| Depth of Field | 0" - 6"@10 mil - Datamatrix |
| Scan Pattern | Omni-directional |
| Scanning Distance | 10.50" |
| Interfaces/Ports |
|---|
| Host Interface | USB |
| Physical Characteristics |
|---|
| Color | Twilight Black |
| Height | 8.0" |
| Width | 3.4" |
| Depth | 5.4" |
| Weight (Approximate) | 12.00 oz |
| Miscellaneous |
|---|
| Green Compliant | Yes |
| Green Compliance Certificate/Authority | RoHS |
Marketing Information
Achieve a new level of productivity and throughput at the checkout stand with the Symbol DS9808 Bar Code Reader. The groundbreaking Symbol DS9808 Bar Code Reader is designed inside and outside to bring a new level of versatility, functionality and performance to the checkout stand.
