| General Information |
|---|
| Manufacturer | LG-Ericsson USA, Inc |
| Manufacturer Part Number | ES-3052GP |
| Manufacturer Website Address | www.lgericssonus.com |
| Brand Name | LG-Ericsson |
| Product Line | iPECS |
| Product Series | ES-3000 |
| Product Model | ES-3052GP |

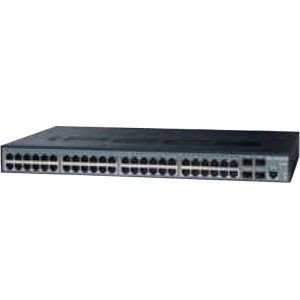

| Product Name | iPECS ES-3052GP Ethernet Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports |
|---|
| Number of Ports | 48 |
| Ethernet Port | Yes |
| Fast Ethernet Port | Yes |
| Gigabit Ethernet Port | Yes |
| 10Gigabit Ethernet Port | No |
| Token Ring Port | No |
| LRE Port | No |
| DSL Port | No |
| Interfaces/Ports | 48 x RJ-45 10/100/1000Base-T PoE+ LAN |
| Interfaces/Ports | 1 x RJ-45 Console Management |
| Media & Performance |
|---|
| Forwarding/Filtering Rate | 71.4 Mpps |
| Switching Fabric | 96 Gbps |
| I/O Expansions |
|---|
| Number of Expansion Slots | 4 |
| Expansion Slots | (4 Total) SFP Uplink |
| Network & Communication |
|---|
| Layer Supported | 2 |
| Management & Protocols |
|---|
| Manageable | Yes |
| Management | DHCP Telnet MIB VLAN SNMP v1,v2,v3 Web-based Management RMON 1,2QoS |
| Memory |
|---|
| Standard Memory | 128 MB |
| Memory Technology | DRAM |
| Flash Memory | 32 MB |
| Power Description |
|---|
| Power Over Ethernet | Yes |
| Input Voltage | 110 V AC |
| Input Voltage | 220 V AC |
| Input Voltage Range | 100 V AC to 240 V AC |
| Power Source | Power Supply |
| Redundant Power Supply | No |
| Physical Characteristics |
|---|
| Form Factor | Rack-mountable |
| Height | 1.7" |
| Width | 17.3" |
| Depth | 14.9" |
| Weight (Approximate) | 11.62 lb |
| Miscellaneous |
|---|
| Green Compliant | Yes |
| Green Compliance Certificate/Authority | RoHS |
| Green Compliance Certificate/Authority | WEEE |
| Warranty |
|---|
| Standard Warranty | Lifetime |
Marketing Information
iPECS ES-3000 Series are fully managed Layer 2 switches that support enterprise-class Layer 2 switching features including advanced QoS, security and simplified and intuitive management features allowing network administrators to build high performing robust networks affordably.
The ES-3000 series comes in 8 models from Fast Ethernet to Gigabit Ethernet offering multiple choices to meet the demands of high performance network environments. Administrators can extend existing networks or build new reliable and high-performing networks using sophisticated features optimized for SMBs and supporting both aggregation and access-level solutions.
