| General Information |
|---|
| Manufacturer | Motorola, Inc |
| Manufacturer Part Number | DS9808-SR00007CNWR |
| Manufacturer Website Address | www.motorola.com/us |
| Brand Name | Motorola |
| Product Line | Symbol |

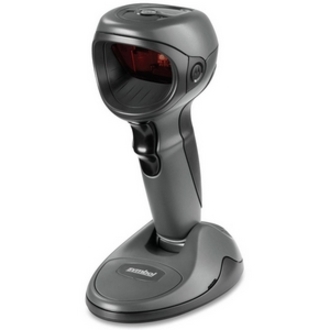

| Product Name | Symbol DS9808SR Bar Code Reader |
| Product Type | Handheld Bar Code Reader |
| Technical Information |
|---|
| Connectivity Technology | Cable |
| Bar Code Dimension | 2D |
| Bar Code Symbology Supported | 1-D / LINEAR CODES: UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/ JAN-8/JAN-13 plus supplementals) ISBN (Bookland) ISSN Coupon Code Code 39 (Standard, Full ASCII, Trioptic) Code 128 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated) Code 93 Codabar/NW7 Code 11 (Standard, Matrix 2 of 5) MSI Plessey I 2 of 5 (Interleaved 2 of 5 / ITF, Discrete 2 of 5, IATA, Chinese 2 of 5) GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked, Inverse) Base 32 (Italian Pharmacode) PDF417 (and variants): PDF417 (Standard, Macro) MicroPDF417 (Standard, Macro) Composite Codes (CC-A, CC-B, CC-C) 2-D: TLC-39 Aztec (Standard, Inverse) MaxiCode, DataMatrix/ECC 200 (Standard, Inverse) QR Code (Standard, Inverse, Micro) Postal: U.S. Postnet and Planet U.K. Post Japan Post Australian Post Netherlands KIX Code Royal Mail 4 State Customer UPU FICS 4 State Postal USPS 4CB |
| Light Source | LED |
| Image Sensor | Imager |
| Decode Rate (in/s) | 100 in/s |
| Maximum Scan Resolution | 7.80 mil |
| Depth of Field | 0" - 4.49"@5 mil - Code 39 |
| Depth of Field | 0" - 8.50"@10 mil - UPC/EAN |
| Depth of Field | 0" - 10.51"@13 mil - UPC/EAN |
| Depth of Field | 0" - 5"@6.60 mil - PDF417 |
| Depth of Field | 0" - 6"@10 mil - Datamatrix |
| Scan Pattern | Omni-directional |
| Scanning Distance | 18" |
| Interfaces/Ports |
|---|
| Host Interface | Multi-interface |
| Physical Characteristics |
|---|
| Color | Twilight Black |
| Height | 8.0" |
| Width | 5.4" |
| Depth | 3.4" |
| Weight (Approximate) | 12.00 oz |
| Miscellaneous |
|---|
| Additional Information | Supported Interface: USB RS-232 RS-485 (IBM 46xx Protocols) KBW interface |
| Green Compliant | Yes |
| Green Compliance Certificate/Authority | RoHS |
Marketing Information
Achieve a new level of productivity and throughput at the checkout stand with the Motorola's DS9808SR Bar Code Reader. The groundbreaking DS9808SR Bar Code Reader is designed inside and outside to bring a new level of versatility,functionality and performance to the checkout stand. Outside, the DS9808SR Bar Code Reader offers an extraordinary one-of-a-kind hybrid form factor by marrying a solid base with our advanced handheld ergonomics, creating a scanner that is truly designed to deliver superior comfort and ease of use in both handheld and hands-free scanning modes.
