| General Information |
|---|
| Manufacturer | Motorola, Inc |
| Manufacturer Part Number | DS4208-SR00001WR |
| Manufacturer Website Address | www.motorola.com/us |
| Brand Name | Motorola |
| Product Model | DS4208 |

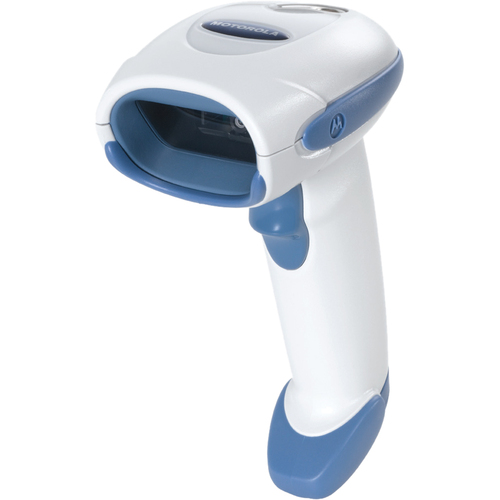

| Product Name | DS4208 Handheld Bar Code Reader |
| Product Type | Handheld Bar Code Reader |
| Technical Information |
|---|
| Connectivity Technology | Cable |
| Bar Code Dimension | 1D |
| Bar Code Dimension | 2D |
| Bar Code Symbology Supported | 1D: UPC/EAN UPC/EAN with supplementals Bookland EAN ISSN UCC Coupon Extended Code Code 128 GS1-128 ISBT 128 Code 39 Code 39 Full ASCII Trioptic Code 39 Code 32 Code 93 Code 11 Matrix 2 of 5 Interleaved 2 of 5 Discrete 2 of 5 Codabar MSI Chinese 2 of 5 GS1 DataBar Variants Korean 3 of 5 ISBT Concat 2D: PDF417 MicroPDF417 Composite Codes TL C-39 Data Matrix Maxicode QR Code MicroQR Aztec Postal: Australian Post US PLANET Royal Mail 4 State Customer US POSTNET KIX Code (Dutch) UK Postal Japan Post UPU 4 State Postal FICS (Post US4) USPS 4 State Postal (Post US3) |
| Light Source | LED |
| Image Sensor | Imager |
| Depth of Field | 0.20" - 6.80"@5 mil - Code 39 |
| Depth of Field | 0" - 12.70"@10 mil - 80% UPCA |
| Depth of Field | 0.30" - 15.20"@13 mil - 100% UPCA |
| Depth of Field | 1.50" - 4.30"@5 mil - PDF 417 |
| Depth of Field | 0.80" - 6"@6.60 mil - PDF 417 |
| Depth of Field | 0.40" - 7.20"@10 mil - Data Matrix |
| Scan Pattern | Omni-directional |
| Interfaces/Ports |
|---|
| Host Interface | IBM 46XX |
| Host Interface | Keyboard Wedge |
| Host Interface | RS-232 |
| Host Interface | USB |
| Physical Characteristics |
|---|
| Color | Cash Register White |
| Height | 6.7" |
| Width | 2.7" |
| Depth | 3.7" |
| Weight (Approximate) | 6.10 oz |
Marketing Information
The DS4208 delivers the blazing speed typical of laser scanners on both 1D and 2D bar codes, allowing you to accommodate 2D bar codes without sacrificing scanning quality or performance. Users never need to take time to align the bar code with the scanner or pause between scans. And since you can capture bar codes printed on paper labels or displayed on the screen of a mobile phone, retailers can accommodate customers who download mobile coupons, mobile loyalty cards and more. You get industry-leading scanning speed on every bar code; true point-and-shoot first time scanning simplicity on even damaged and poorly printed bar codes; and a durable design for all day everyday reliability all at an affordable price.
