| General Information |
|---|
| Manufacturer | Comtrol Corporation |
| Manufacturer Part Number | 99449-7 |
| Manufacturer Website Address | www.comtrol.com |
| Brand Name | Comtrol |
| Product Line | DeviceMaster |
| Product Series | RTS |
| Product Model | RTS 8 |

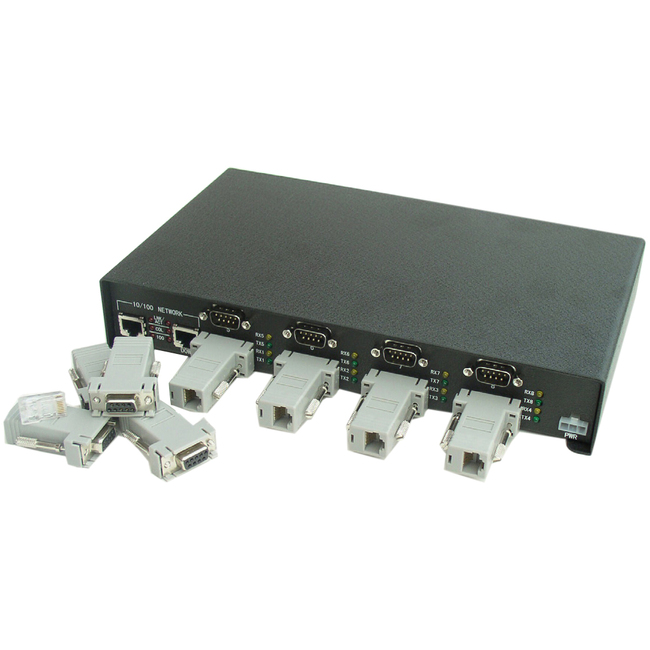

| Product Name | DeviceMaster RTS 8 8-Port Device Server |
| Product Type | Device Server |
| Interfaces/Ports |
|---|
| Interfaces/Ports | 2 x RJ-45 10/100Base-TX Network |
| Interfaces/Ports | 8 x DB-9 Serial RS-232 |
| Media & Performance |
|---|
| Data Transfer Rate | 10 Mbps Ethernet |
| Data Transfer Rate | 100 Mbps Fast Ethernet |
| Data Transfer Rate | 300 Kbps to 230.40 Kbps Serial |
| Management & Protocols |
|---|
| Management | PortVision remote monitoring and management Watchdog Reset SNMP DHCP RARP ARP BOOTP Telnet HTTP |
| Miscellaneous |
|---|
| Green Compliant | Yes |
| Green Compliance Certificate/Authority | RoHS |
| Physical Characteristics |
|---|
| Form Factor | Rack-mountable |
| Dimensions | 1.8" Height x 10.8" Width x 6.3" Depth |
| Weight (Approximate) | 4.82 lb |
| Warranty |
|---|
| Standard Warranty | 2 Year Limited |
Marketing Information
The Comtrol DeviceMaster RTS 8-Port DB9/RJ45 is an eight-port device server designed for network-enabling serial communications devices. When used with the included NS-Link driver software and a host PC, the DeviceMaster RTS enables placement of COM or TTY ports anywhere on an Ethernet network or across the Internet. In applications where connecting legacy serial devices to a PC without software changes is a requirement, a pair of DeviceMaster RTS units can be used to create a point-to-point serial tunnel across the network that seamlessly transfers serial data via TCP or UDP socket connections.
