| General Information |
|---|
| Manufacturer | SonicWALL |
| Manufacturer Part Number | 01-SSC-9293 |
| Manufacturer Website Address | www.sonicwall.com |
| Brand Name | SonicWALL |
| Product Model | 01-SSC-9293 |

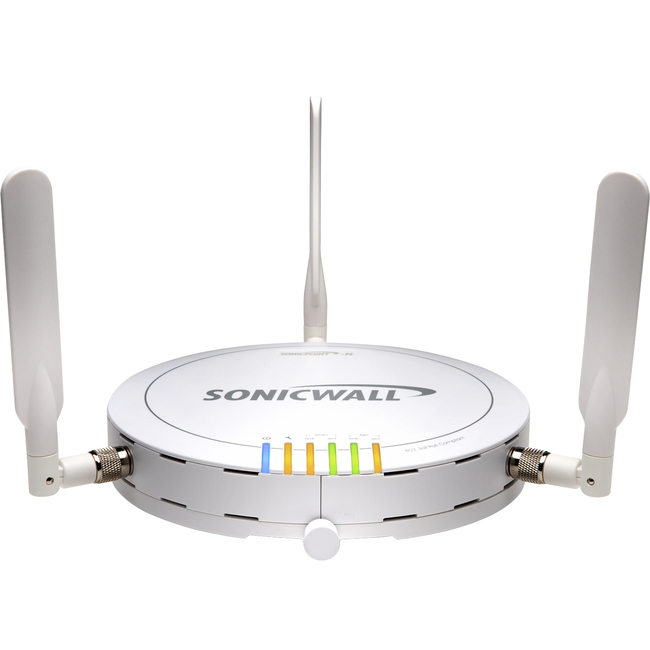

| Product Name | SonicPoint-N Dual-Radio Wireless Access Point |
| Packaged Quantity | 8 |
| Product Type | Wireless Access Point |
| Technical Information |
|---|
| Wi-Fi Standard | IEEE 802.11n (draft) |
| ISM Band | Yes |
| UNII Band | Yes |
| ISM Minimum Frequency | 2.41 GHz |
| ISM Maximum Frequency | 2.47 GHz |
| UNII Minimum Frequency | 5.18 GHz |
| UNII Maximum Frequency | 5.82 GHz |
| Number of Antennas | 3 |
| Antenna Connector | TNC Connector |
| Wireless Transmission Speed | 300 Mbps |
| Wireless Security | WEP WPA WPA2 TKIP AES MAC Filtering EAP |
| Features | MIMO Technology |
| Interfaces/Ports |
|---|
| Ethernet Port | Yes |
| Fast Ethernet Port | Yes |
| Gigabit Ethernet Port | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Management Port | Yes |
| Power Description |
|---|
| Power Over Ethernet | Yes |
| Input Voltage | 48 V DC |
| Power Source | AC Adapter |
| Physical Characteristics |
|---|
| Form Factor | Wall Mountable |
| Form Factor | Ceiling-mountable |
| Height | 1.5" |
| Width | 7.5" |
| Depth | 7.5" |
| Weight (Approximate) | 1.25 lb |
| Miscellaneous |
|---|
| Certifications & Standards | IEEE 802.11a/b/g/n IEEE 802.3/3u/3ab IEEE 802.3af IEEE 802.11d FCC CE C-Tick |
| Green Compliant | Yes |
| Green Compliance Certificate/Authority | WEEE |
| Green Compliance Certificate/Authority | RoHS |
Marketing Information
The demands on organizations' wireless networks-such as increased connection counts, bandwidth consumption, need for seamless roaming and extended perimeters-are all taxing on performance, and complicate the management of existing 802.11 wireless network infrastructures. The challenge facing many businesses is how to preserve compatibility with legacy 802.11 technologies, while enhancing and optimizing their wireless networks through centralized management and control across all nodes of the WLAN, and at the same time, maintaining maximum security.
