| General Information |
|---|
| Manufacturer | Cooler Master Co., Ltd |
| Manufacturer Part Number | RS700-AMBAD3-US |
| Manufacturer Website Address | www.coolermaster-usa.com |
| Brand Name | Cooler Master |
| Product Model | M 700W |

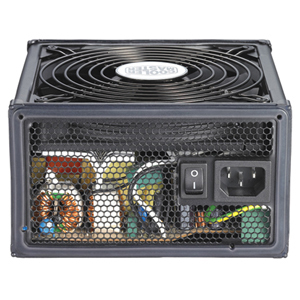

| Product Name | Silent Pro M 700W ATX12V & EPS12V Power Supply |
| Product Type | ATX12V & EPS12V Power Supply |
| Technical Information |
|---|
| Efficiency | 85% |
| Power Factor Correction (PFC) | Active |
| Number of Fans | 1 |
| Protection Type | Over Voltage |
| Protection Type | Over Current |
| Protection Type | Over Temperature |
| Protection Type | Over Loading |
| Protection Type | Short Circuit |
| Reliability |
|---|
| MTBF | 876581277.78 Hour |
| Power Description |
|---|
| Input Voltage | 110 V AC |
| Input Voltage | 220 V AC |
| Input Voltage Range | 90 V AC to 264 V AC |
| Output Voltage | 3.3 V @ 28 A |
| Output Voltage | 5 V @ 25 A |
| Output Voltage | 12 V @ 50 A |
| Output Voltage | -12 V @ 500 mA |
| Input Current | 12 A @110 V AC/6 A @220 V AC |
| Output Power | 700 W |
| Interfaces/Ports |
|---|
| Receptacles | 24-pin ATX12V Motherboard |
| Receptacles | 1 x 4+4pin EPS12V Motherboard |
| Receptacles | 2 x 8-pin PCI-E |
| Receptacles | 9 x Serial ATA |
| Receptacles | 5 x 4-pin LP4 Peripheral Device |
| Receptacles | 1 x 4-pin SP4 Floppy Drive |
| Physical Characteristics |
|---|
| Dimensions | 3.4" Height x 5.9" Width x 5.9" Depth |
| Miscellaneous |
|---|
| Additional Information | +5Vsb @ 2.5A |
| Green Compliant | Yes |
| Green Compliance Certificate/Authority | ROHS/ 80 Plus |
| Green Compliance Certificate/Authority | ROHS |
| Warranty |
|---|
| Standard Warranty | 5 Year |
Marketing Information
Silent Pro M700W is Cooler Master is designed to meet the market demand of silent products and for those who want to get the most out of their power supply.Equipped with only one +12V line to cut the limit for over clockers and with flat cables to give case modes the opportunity for better cable management this power supply meets the best of three world's : Silent , Powerful and flexibility
