| General Information |
|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | 05146632-5591 |
| Manufacturer Website Address | www.eaton.com/EatonCom/Markets/NorthAmerica |
| Brand Name | Eaton |
| Product Model | PW5125 |

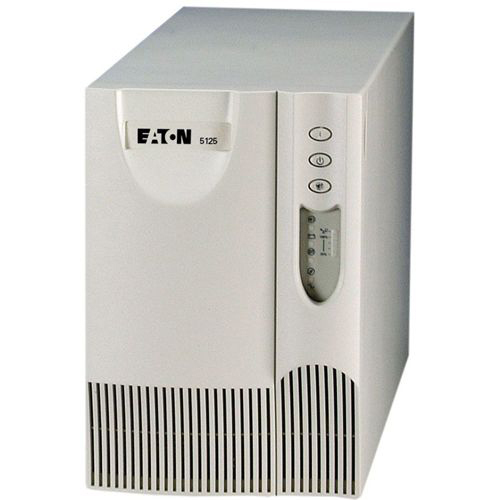

| Product Name | PW5125 1500, 1440VA Tower UPS, 120V |
| Product Type | Line-interactive UPS |
| Technical Information |
|---|
| Plug/Connector Type | NEMA 5-15P |
| Receptacles | 6 x NEMA 5-15R |
| Switching Time | 4 ms |
| Dataline Protection | RJ-11 Modem |
| Power Description |
|---|
| Load Capacity | 1.44 kVA/1.05 kW |
| Input Voltage | 110 V AC |
| Input Voltage Range | 120 V AC Nominal |
| Input Voltage Range | 77 V AC to 152 V AC User Selectable |
| Output Voltage | 120 V AC Nominal |
| Frequency | 56 to 64 Hz Input |
| Voltage Handling | -10 to +6% Utility Regulation |
| Voltage Handling | ±5% RMS Battery Regulation |
| Current | 12 A |
| Management |
|---|
| Network Management | SNMP Manageable Optional |
| Overload Protection | Circuit breaker |
| Bypass Switch | Internal |
| Interfaces/Ports |
|---|
| Interfaces/Ports | 1 x RS-232 Serial |
| Modular Slots | 1 x X-Slot |
| Battery Information |
|---|
| Batteries | Maintenance-free Sealed Lead Acid Hot-swappable |
| Backup/Run Time | 0.10 Hour 1.05 kW Full Load |
| Backup/Run Time | 0.28 Hour 525 W Half Load |
| Battery Recharge Time | <3 Hour |
| Physical Characteristics |
|---|
| Height | 9.8" |
| Width | 6.4" |
| Depth | 18.4" |
| Form Factor | Tower |
| Weight (Approximate) | 50.70 lb |
| Miscellaneous |
|---|
| Additional Information | Increases battery service life and system uptime with ABM battery-charging technology and hot-swappable batteries Increases battery runtime capability with extended battery modules (EBMs) Delivers pure sine wave output with Buck and Double Boost voltage regulation Enables scheduled shutdowns and maximum backup power time for critical devices with Load Segments (separate receptacle groups) |
| Certifications & Standards | Safety Certifications: UL, cUL, NOM, C-Tick, CE mark EMC Compliance: FCC Part 15, EN50091-2, Class B |
| Software Included | Powerware Software Suite |
| Warranty |
|---|
| Standard Warranty | 3 Year |
Marketing Information
The Eaton 5125 Tower UPS provides line-interactive backup power and scalable runtimes for servers, storage systems and network equipment. The 5125 UPS significantly extends battery service life with ABM technology and delivers smooth, continuous power with a pure sine wave output while regulating incoming voltage fluctuations. With watching extended battery modules, the 5125 UPS can provide additional battery runtime.
