| General Information |
|---|
| Manufacturer | Planar Systems, Inc |
| Manufacturer Part Number | 997-2850-00 |
| Manufacturer Website Address | www.planar.com |
| Brand Name | Planar |
| Product Series | PL |
| Product Model | PL1700M-white |

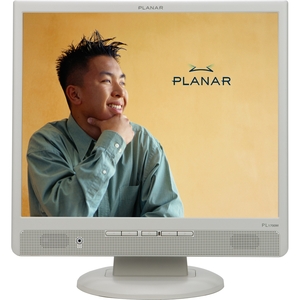

| Product Name | PL1700M-white LCD Monitor |
| Product Type | LCD Monitor |
| Technical Information |
|---|
| Number of Screens | 1 |
| Screen Size | 17" |
| Screen Mode | SXGA |
| Screen Surface | Anti-glare |
| Response Time | 5 ms |
| Horizontal Viewing Angle | 170° |
| Vertical Viewing Angle | 160° |
| Video |
|---|
| Maximum Resolution | 1280 x 1024 |
| Color Supported | 16.7 Million Colors (24-bit) |
| Contrast Ratio | 1,000:1 |
| Brightness | 250 Nit |
| Audio |
|---|
| Speakers | Yes |
| Interfaces/Ports |
|---|
| VGA | Yes |
| Power Description |
|---|
| Input Voltage | 110 V AC |
| Input Voltage | 220 V AC |
| Operating Power Consumption | 25 W |
| Physical Characteristics |
|---|
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 100 x 100 |
| Color | White |
| Height | 15.1" |
| Width | 14.4" |
| Depth | 7.8" |
| Weight (Approximate) | 8.60 lb |
| Miscellaneous |
|---|
| Additional Information | Refresh Rate 56-75 Hz Multi-language OSD Features:
Multi-language support On screen display (OSD) Wall mount options available Mount Type: 100 mm VESA |
| Certifications & Standards | UL TUV-GS CE Mark FCC/B CE Mark TCO 1999 |
| Platform Supported | PC |
| Platform Supported | Mac |
| Country of Origin | China |
| Warranty |
|---|
| Standard Warranty | 3 Year |
Marketing Information
The Planar PL1700M is ideal for small and medium corporate business leaders and the applications that make their businesses succeed. A fast response time combined with great visual performance, this monitor will deliver crisp and bright images for even demand office applications requiring video. Integrated speakers work with your desktop applications.
