| General Information |
|---|
| Manufacturer | Vivotek, Inc |
| Manufacturer Part Number | PZ8111W |
| Manufacturer Website Address | www.vivotek.com |
| Brand Name | Vivotek |
| Product Model | PZ8111W |
| Product Name | PZ8111W Network Camera |
| Product Type | Surveillance/Network Camera |
| Display & Graphics |
|---|
| Image Sensor Type | CCD |
| White Balance Modes | Auto |
| Illumination | 2.76 Lux |
| Illumination | 0.05 Lux |
| Color Supported | Color |
| Tilt | -45° 90° |
| Swivel | -150° 150° |
| Video |
|---|
| Maximum Video Resolution | 720 x 480 |
| Video Formats | MPEG-4 |
| Video Formats | Motion JPEG |
| Audio |
|---|
| Audio Formats | AAC |
| Lens |
|---|
| Focal Length | 4.20 mm to 42 mm |
| Aperture Range | f/1.8 to 2.9 |
| Optical Zoom | 10x |
| Digital Zoom | 10x |
| Exposure |
|---|
| Shortest Shutter Speed | 1/10000 Second |
| Longest Shutter Speed | 1/60 Second |
| Network & Communication |
|---|
| Connectivity Technology | Cable |
| Connectivity Technology | Wireless |
| Wireless Technology | Wi-Fi |
| Wi-Fi Standard | IEEE 802.11b/g/n |
| Ethernet | Yes |
| Ethernet Technology | Fast Ethernet |
| Protocols | TCP/IP |
| Protocols | HTTP |
| Protocols | HTTPS |
| Protocols | UPnP |
| Protocols | RTP |
| Protocols | RTCP |
| Protocols | RTSP |
| Protocols | IGMP |
| Protocols | SMTP |
| Protocols | FTP |
| Protocols | DHCP |
| Protocols | NTP |
| Protocols | DNS |
| Protocols | DDNS |
| Protocols | PPPoE |
| Protocols | QoS |
| Protocols | SNMP |
| Controls/Indicators |
|---|
| Status Indicators | - System power and status indicator
- System activity and network link indicator
|
| Interfaces/Ports |
|---|
| Analog Video Out | Yes |
| Network (RJ-45) | Yes |
| Power Description |
|---|
| Maximum Power Consumption | 12 W |
| Physical Characteristics |
|---|
| Form Factor | Internal |
| Height | 4.9" |
| Diameter | 4.1" |
| Weight (Approximate) | 14.39 oz |
| Miscellaneous |
|---|
| System Requirements | Cell Phone: 3GPP Player Real Player: 10.5 or Above Quick Time: 6.5 or Above Operating System: - Microsoft Windows 7
- Microsoft Windows Vista
- Microsoft Windows XP
- Microsoft Windows 2000
Browser: - Mozilla Firefox
- Internet Explorer 6.0x or Above
|
| Compatibility | NTSC |
| Certifications & Standards | |
| Security Features | - Multi-level User Access with Password Protection
- IP Address Filtering
- Wireless: WEP, WPA-PSK, WPA2 (PZ8111W/21W)
- HTTPS Encrypted Data Transmission?
- 802.1X port-based authentication for network protection
|
| Platform Supported | PC |
| Green Compliant | Yes |
| Green Compliance Certificate/Authority | RoHS |
| Warranty |
|---|
| Standard Warranty | 2 Year |
Marketing Information

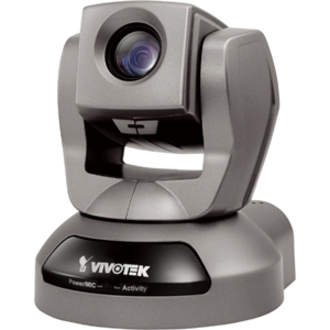

PZ8111W/21W is a high-performance network camera featuring 10x optical zoom and pan/tilt functionality. The camera is designed for indoor surveillance applications such as retail stores, offices or banks. The built-in 10x motorized optical zoom module provides greater depth of field when zoomed in. Therefore, it can display clear-cut images on near or distant objects.
