| General Information |
|---|
| Manufacturer | AMC Optics |
| Manufacturer Part Number | GLC-SX-MM-10PK-AMC |
| Manufacturer Website Address | www.approvedmemory.com |
| Brand Name | AMC Optics |
| Product Model | GLC-SX-MM-10PK-AMC |
| Product Name | SFP (mini-GBIC) Module |
| Product Type | SFP (mini-GBIC) |

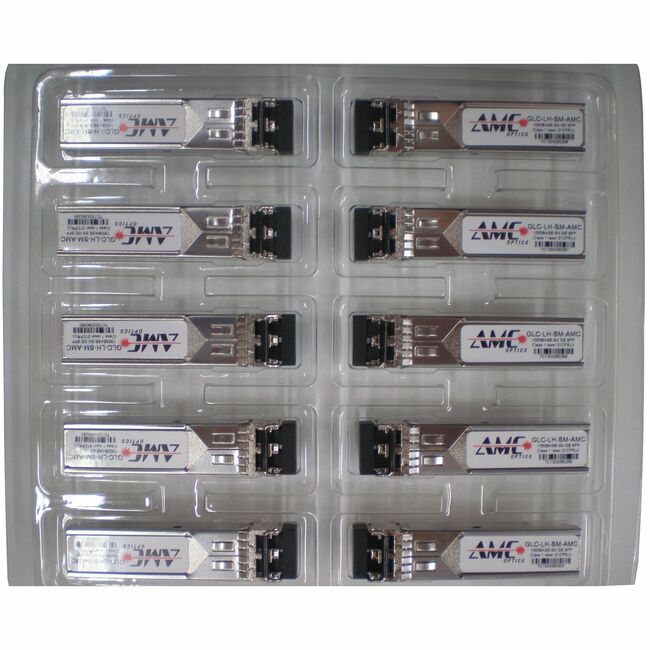

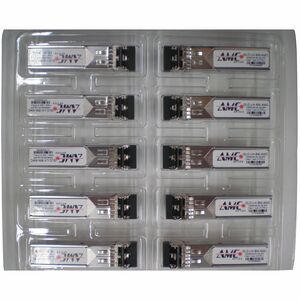

| Packaged Quantity | 10 |
| Packing | Pack |
| Technical Information |
|---|
| Application/Usage | Data Networking |
| Application/Usage | Optical Network |
| Interfaces/Ports |
|---|
| Interfaces/Ports | 1 x 1000Base-SX |
| Interfaces/Ports Details | 1 x LC Duplex 1000Base-SX Network |
| Media & Performance |
|---|
| Connectivity Media | 50/125 µm, 62.5/125 µm Multi-mode 1000Base-SX |
| Data Transfer Rate | 1.25 Gbps Gigabit Ethernet |
| Physical Characteristics |
|---|
| Form Factor | Hot-pluggable |
| Miscellaneous |
|---|
| Compatibility | MSA Compaint |
| Green Compliant | Yes |
| Green Compliance Certificate/Authority | RoHS-6 |
Marketing Information
The SFP-XXX series multi-mode transceivers is small form factor pluggable module for bi-directional serial optical data communications such as Gigabit Ethernet 1000BASE-SX and Fiber Channel FC-PH-2 for 100-M5-SN-1 and 100-M6-SN-1. It is with the SFP 20-pin connector to allow hot plug capability. This module is designed for multi-mode fiber and operates at a nominal wavelength of 850nm.
The transmitter section uses a Vertical Cavity Surface Emitted Laser (VCSEL) and is a Class 1 laser compliant according to International Safety Standard IEC 60825. The receiver section uses an integrated GaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.
