| General Information |
|---|
| Manufacturer | Cooler Master Co., Ltd |
| Manufacturer Part Number | RSA00-AMBAJ3-US |
| Manufacturer Website Address | www.coolermaster-usa.com |
| Brand Name | Cooler Master |
| Product Series | M |
| Product Model | RSA00-AMBAJ3-US |

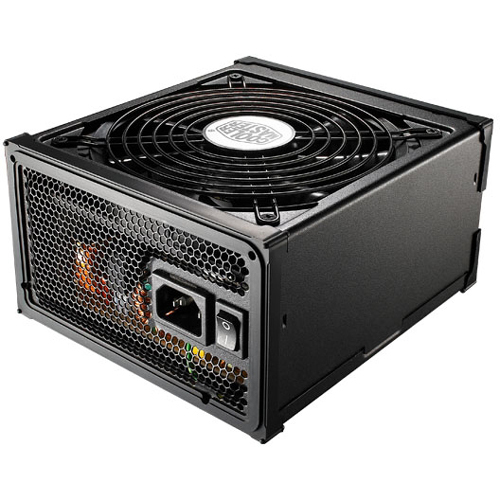

| Product Name | Silent Pro M RSA00-AMBAJ3-US ATX12V & EPS12V Power Supply |
| Product Type | ATX12V & EPS12V Power Supply |
| Technical Information |
|---|
| Efficiency | 85% |
| Power Factor Correction (PFC) | Active |
| Number of Fans | 1 |
| Protection Type | Over Voltage |
| Protection Type | Under Voltage |
| Protection Type | Over Current |
| Protection Type | Over Power |
| Protection Type | Over Loading |
| Protection Type | Short Circuit |
| Protection Type | Over Temperature |
| NVIDIA SLI Supported | Yes |
| Reliability |
|---|
| MTBF | 100000 Hour |
| Power Description |
|---|
| Input Voltage | 110 V AC |
| Input Voltage | 220 V AC |
| Input Voltage Range | 90 V AC to 264 V AC |
| Output Voltage | 3.3 V DC @ 30 A |
| Output Voltage | 5 V DC @ 30 A |
| Output Voltage | 12 V DC @ 80 A |
| Output Voltage | -12 V DC @ 300 mA |
| Output Voltage | 5 V DC @ 3 A |
| Input Current | 14 A @110 V AC/8 A @220 V AC |
| Output Power | 1 kW |
| Interfaces/Ports |
|---|
| Receptacles | 1 x 20+4pin ATX Motherboard |
| Receptacles | 2 x 4+4pin ATX12V Motherboard |
| Receptacles | 10 x 6+2pin PCI-E |
| Receptacles | 9 x Serial ATA |
| Receptacles | 1 x 4-pin SP4 Floppy Drive |
| Receptacles | 6 x 4-pin LP4 Peripheral Device |
| Physical Characteristics |
|---|
| Dimensions | 3.4" Height x 5.9" Width x 6.5" Depth |
| Miscellaneous |
|---|
| Green Compliant | Yes |
| Green Compliance Certificate/Authority | ROHS/ 80 Plus |
| Green Compliance Certificate/Authority | Energy star |
| Warranty |
|---|
| Standard Warranty | 5 Year |
Marketing Information
Cooler Master adds Silent Pro M RSA00-AMBAJ3-US ATX12V & EPS12V Power Supply, giving extreme overclockers and/or ultra high-end systems all the power they need. With up to 80A on a single 12V rail, these power supplies deliver where it counts and won't have any problems powering even the most demanding multi-graphic card systems. These units feature flat modular cables for improved airflow and cable management. It also comes with shock absorption silicon pads to remove possible vibrations.
